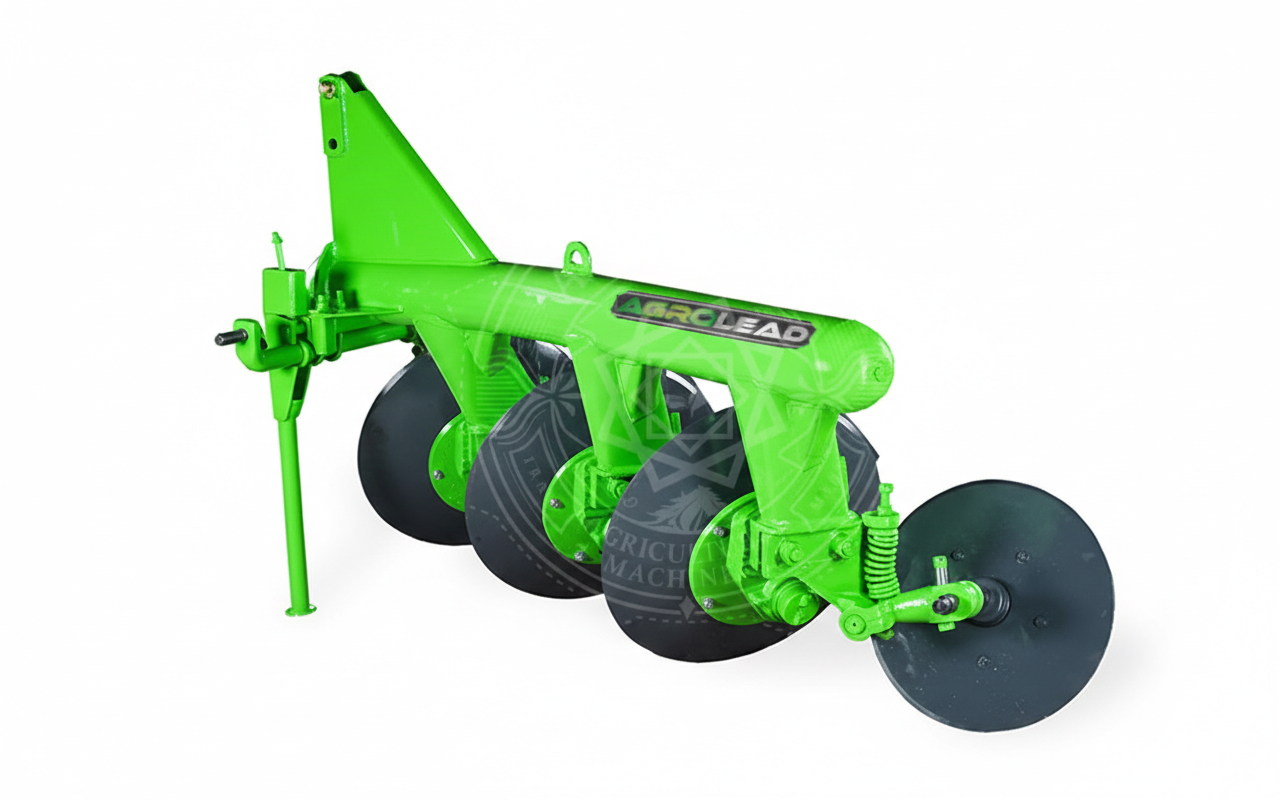

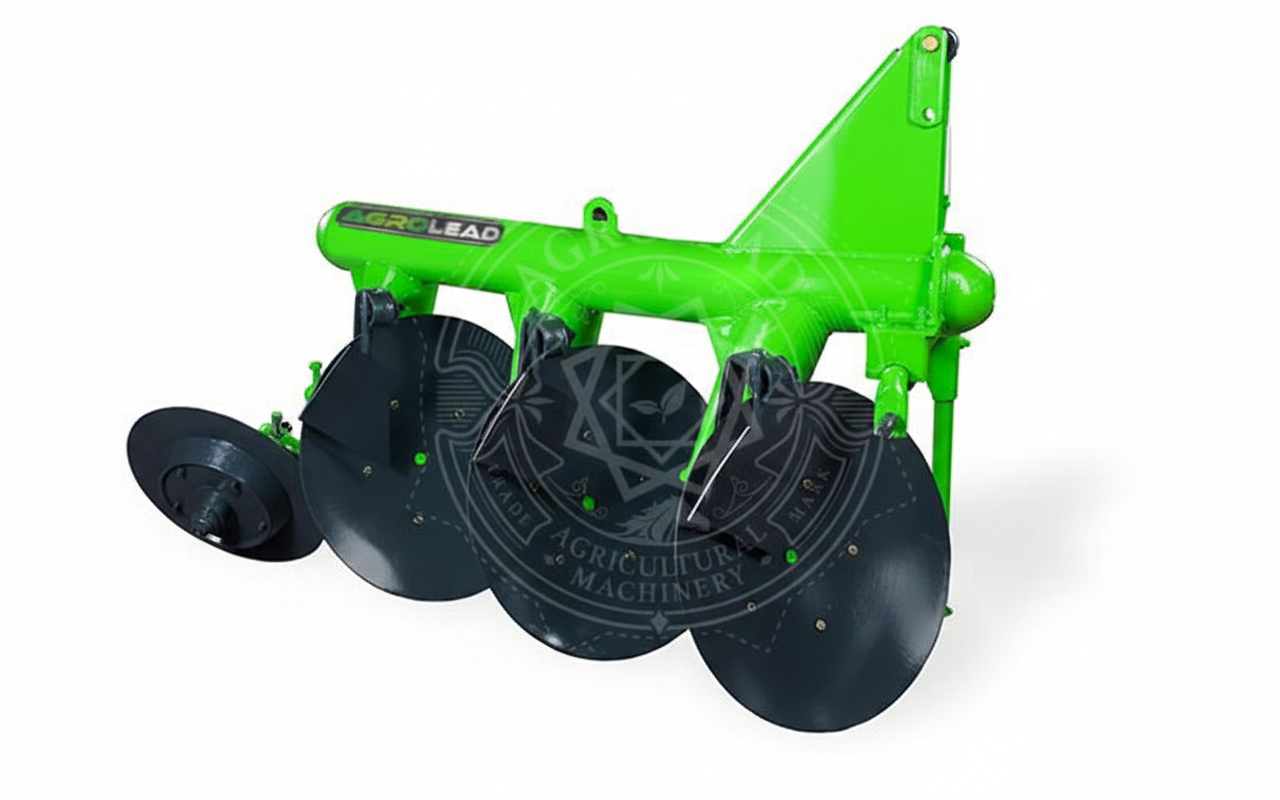

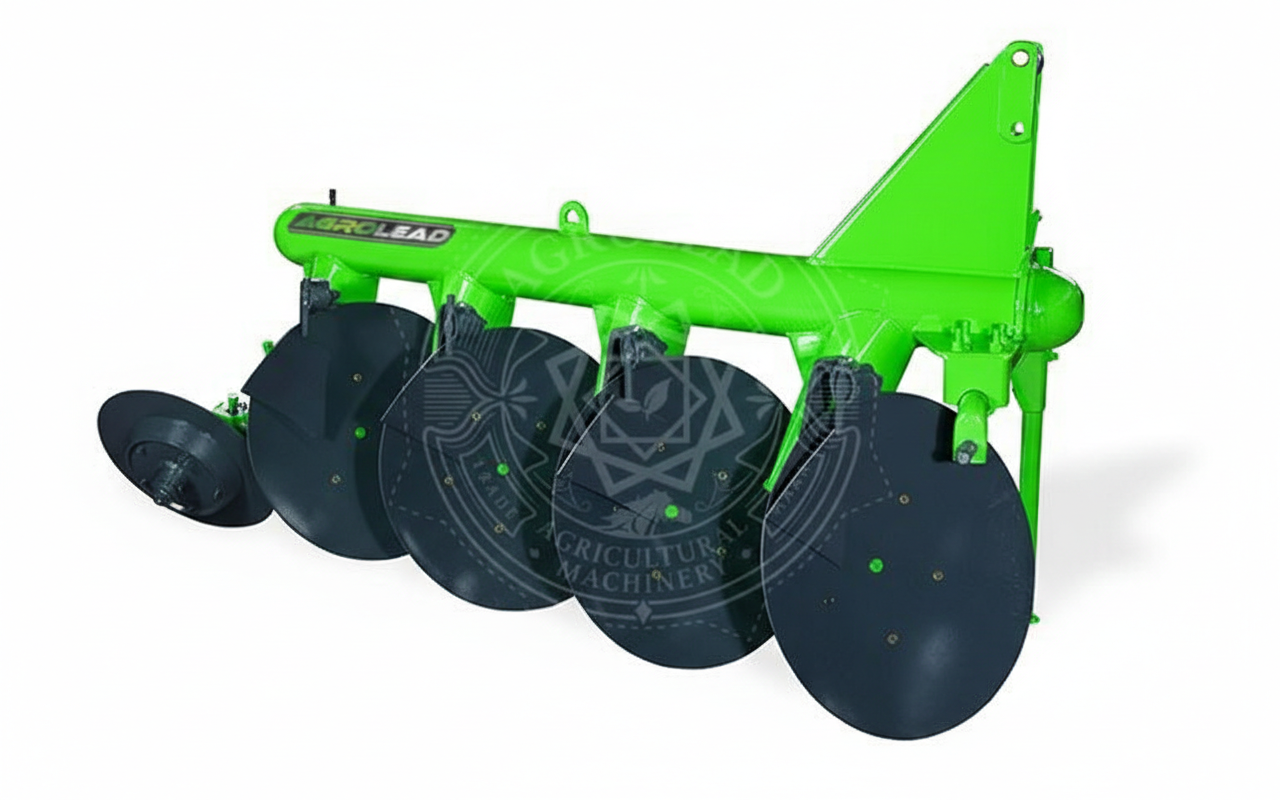

Aratri disc plough

Aratri Disc Ploughs designed to work in all types of soil for functions such as soil breaking, soil raising, soil turning and soil mixing.Beside this, they are used to open the new fields and to process the stony areas, can be used at rocky and rooted lands. It is specially useful in hard and dry trashy land conditions and in soils where scouring is a major problem.Aratri Disc Ploughs are ranging from 2,3,4,5 and 6 furrows. While processing, it prevents the occurrence of the big holes and mudding the upper part of furrows. There is no possibility to stop up because of grass, helves and farm fertilizer. Its’ special design allows to easier  By these features, the damage that may occur in disc ploughs and tractor can be prevented. The exposure time of plough chassis and discs are rather long. Particulary the discs are boron steel from Turkey, 52-55 Rhe hardness, Ø660 or Ø710 mm and are adjustable to get the maximum performance from the tractor.

TECHNICAL SPECIFICATIONS MODEL
ARATRI 266 ARATRI 366 ARATRI 466 ARATRI 566
Number of Discs, pcs 2 3 4 5
Total Length, mm 1155 2130 2520 2910
Total Width, mm 1115 1265 1420 1520
Total Height, mm 1235 1235 1235 1235
Working Depth, cm 25 25 25 25
Working Width, cm 66 99 132 165
Space of Discs, cm 53 53 53 53
Dia. of disc, mm 660 660 660 660
Required Power, hp 35-40 55-60 70-80 85-90
Total Weight, kg 310 400 470 540
